Description

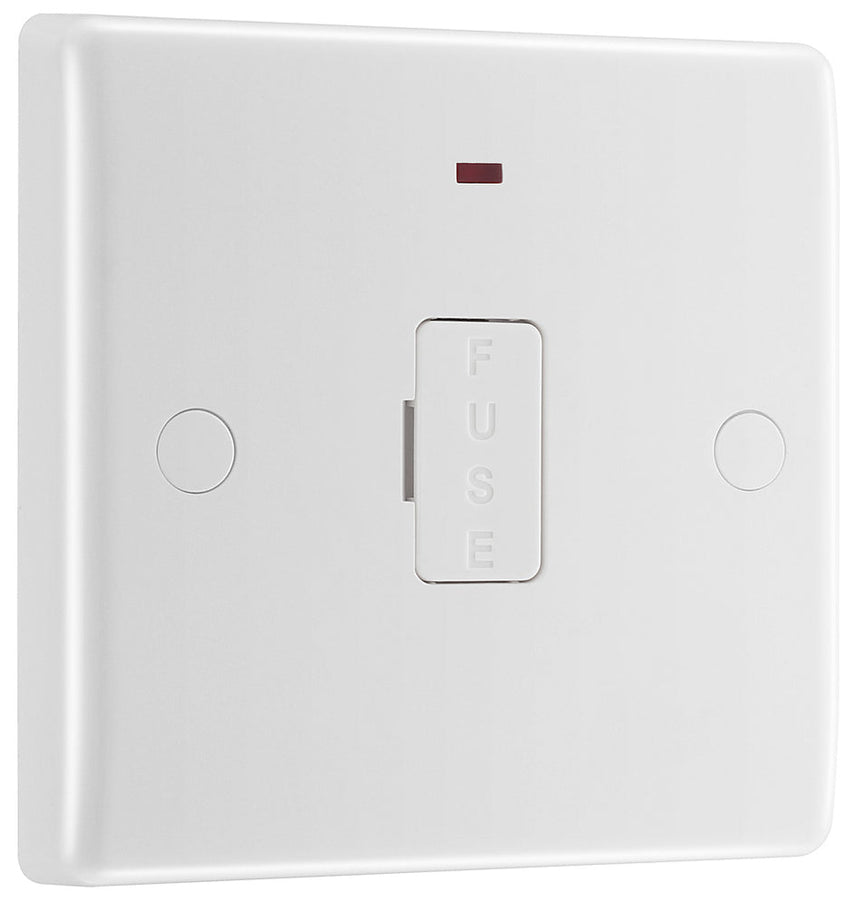

BG 857 Moulded Round Edge | White | 13A Flex Outlet Neon Unswitched Fused Connection Unit
- 13A Rated
- Easy to install supplied with fixing screws and installation instructions
- Ideal for spur circuits and hard wired power appliances
- Angled colour coded terminals with captive screws provide easy access for quick installation
- LED power Indicator reliable and low power, and integrated flex outlet has a cord grip in the lower edge with a removable knockout
- Screw covers for sleek appearance
- Minimum mounting box depth 35mm
- Certified to BS 1363 Part 4
This Nexus 800 series white moulded double 13A fused and unswitched connection unit with indicator from British General provides an outlet from the mains containing the fuse ideal for spur circuits and hardwired appliances. The plate has an optional flex outlet with removable blanking piece at the lower edge, and a reversible cord-grip.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with softly rounded edges and screw caps for a sleek appearance.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Flex Out | Yes |
| Flex Out Position | Bottom Edge |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 30 |
Downloads
Customer reviews
BG 857 Moulded Round Edge | White | 13A Flex Outlet Neon Unswitched Fused Connection Unit
Regular price
£4.53
