Description

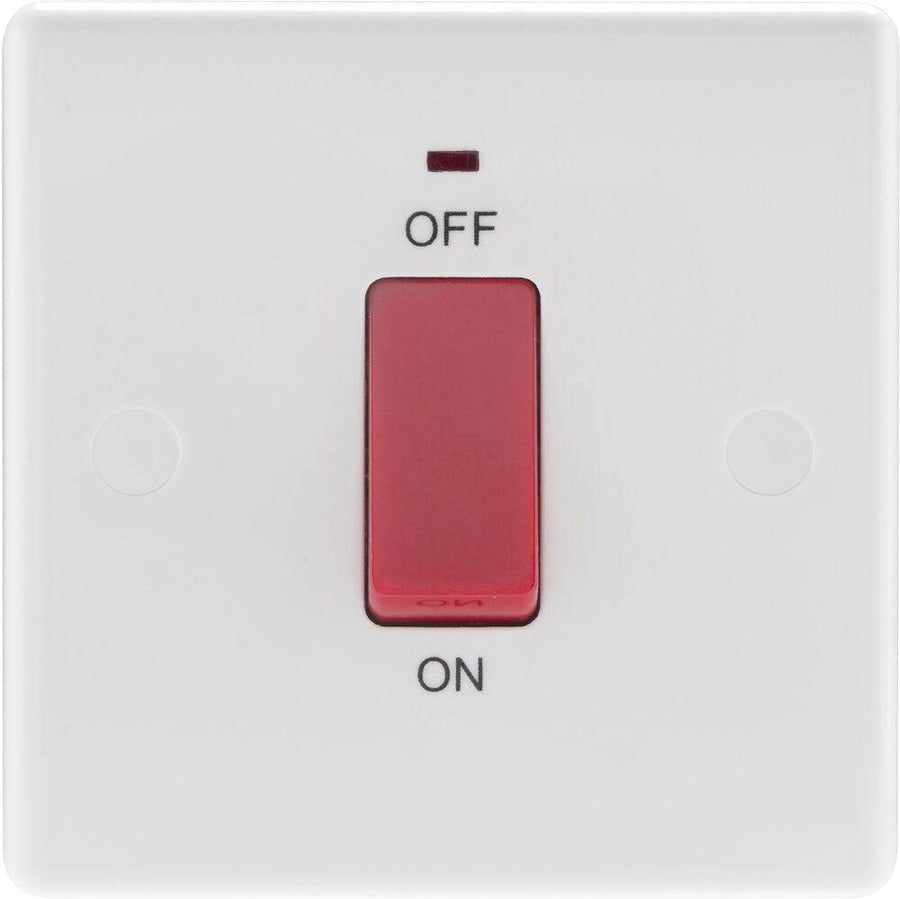

BG 874 Moulded Round Edge | White | 1 Gang 45A 2 Pole Neon Cooker Switch
- 45A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Angled colour coded terminals with captive screws provide easy access for quick installation
- Screw covers for sleek appearance
- LED power Indicator, reliable and low power
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Double Pole switching for the peace of mind of a safer installation
- Minimum mounting box depth 47mm
This Nexus 800 series white moulded 45A double pole switch from British General is ideal for use with cookers and has a flush power indicator. Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed with colour coded terminals and captive screws for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 4 x 4 , 3 x 6.0, 1 x 16 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
Downloads
