Description

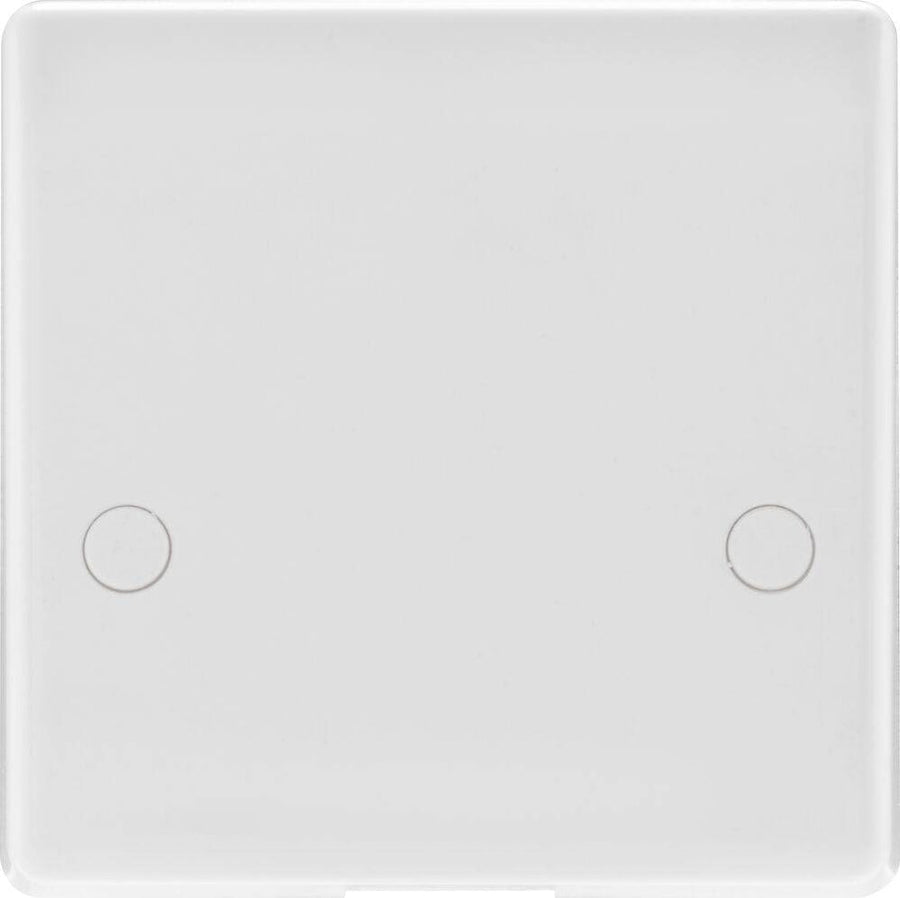

BG 879 Moulded Round Edge | White | 1 Gang 45A Bottom Entry Flex Outlet Plate
- 45A Rated
- Easy to install supplied with fixing screws and installation instructions
- Ideal for cookers and ovens
- cable entry slot at the lower edge of the faceplate
- Reversible cord grip and removable reducer to accommodate different flex sizes
- In-line terminals with captive screws provide easy access for quick installation
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 47mm
This Nexus 800 series white moulded 45A flex outlet plate from British General has cable entry at the lower edge with removable reducer and reversible cord-grip. Ideal for wiring cookers and ovens under a unit or worktop where the isolator is located elsewhere. The outlet plate has a high resistance to fading, discolouration and scratches, with anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed captive screws for ease of installation, and finished with soft round edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 1 x 10 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Style Type | Not Applicable |
| Switch Type (Ways & Poles) | N/A |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Switch State | N/A |
| Warranty (years) | 30 |
