Description

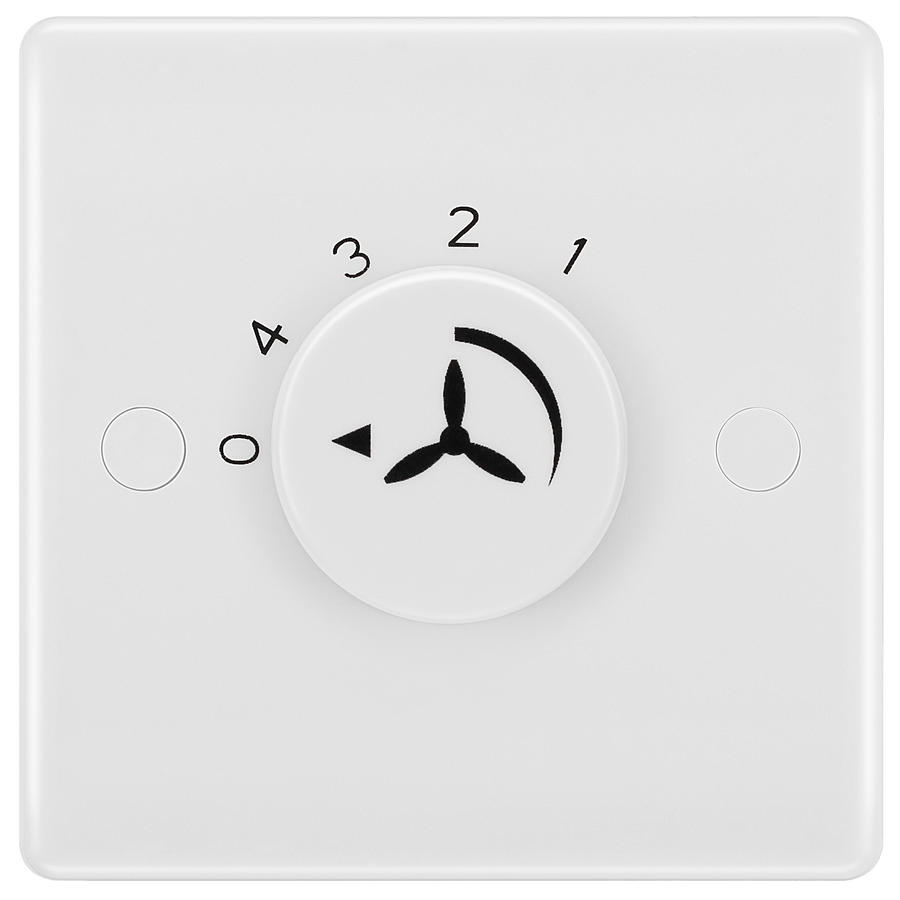

BG 887 Moulded Round Edge | White | 1 Gang 100W 1 Way 4 Speed Rotary Fan Controller
- 100W Rated
- Easy to install, supplied with fixing screws and installation instructions
- 4 position fan controller
- Maximum load 100W
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 35mm
- Certified to BS EN 60669-2-1
This Nexus 800 series white moulded fan speed controller from British General has 4 speed settings - simply rotate the knob to speed up or slow down the fan. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Inline |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rotary |
| Switch Type (Ways & Poles) | One Way |
| Fixing Centres (mm) | W-60.3 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
