Description

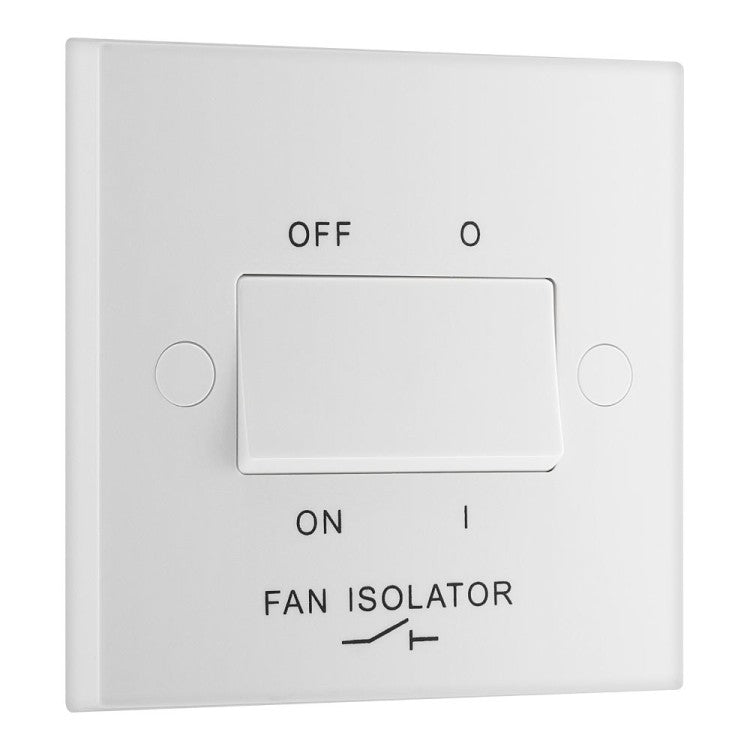

BG 915 Moulded Square Edge | White | 1 Gang 10AX 3 Pole Fan Isolator Switch
This is the BG Nexus 915 White Moulded, a Triple Pole Fan Isolator Switch 10A 10AX in White Plastic Square Edge
This 900 series white moulded 10A triple pole fan isolator from British General provides a safe and simple method of isolating mechanical fan units.
Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.
Finished with classic square edges and screw caps for a sleek appearance.
Triple Pole Fan Isolator Switch 10A in White Plastic Square Edge - Specs
- 10A 10AX Rated
- Easy to install, supplied with fixing screws and installation instructions
- The Fan Isolator switch has a triple pole switching design, however can be used for double pole applications if required
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth: 16mm
- Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
- Certified to BS60669-1
- ASTA Licence number 1015
Triple Pole Fan Isolator Switch 10A in White Plastic Square Edge - Features
- Model: BG Nexus 915
- Triple pole fan switch for wall mounting
- Captive, backed out terminal screws for fast installation
- Rating: 10A 10AX Rated
- Voltage: 250V AC
- Standard(s): BS EN 60669-2-4
- Terminal Capacity: 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
- RoHS Directive
- WEEE Directive
- Mounting Box Depth (Min): 25mm
- Fixing Centres: 60.3mm
- Dimensions: 86mm width x 86mm length x 22.8mm depth
- Front plate height: 10mm
- IP rating: IP20 rated
- CE Mark
